Description
QUICK OVERVIEW

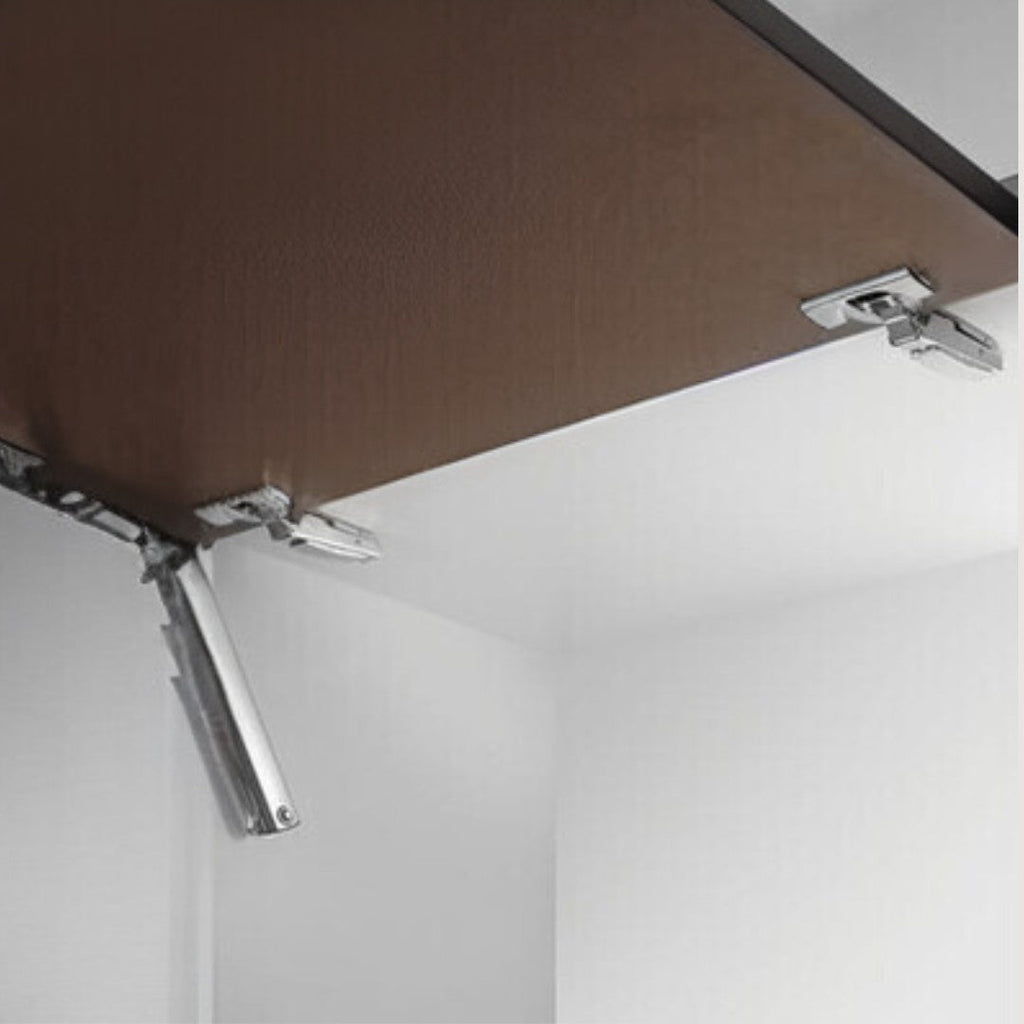

AVENTOS HK-XS - Stay Lift

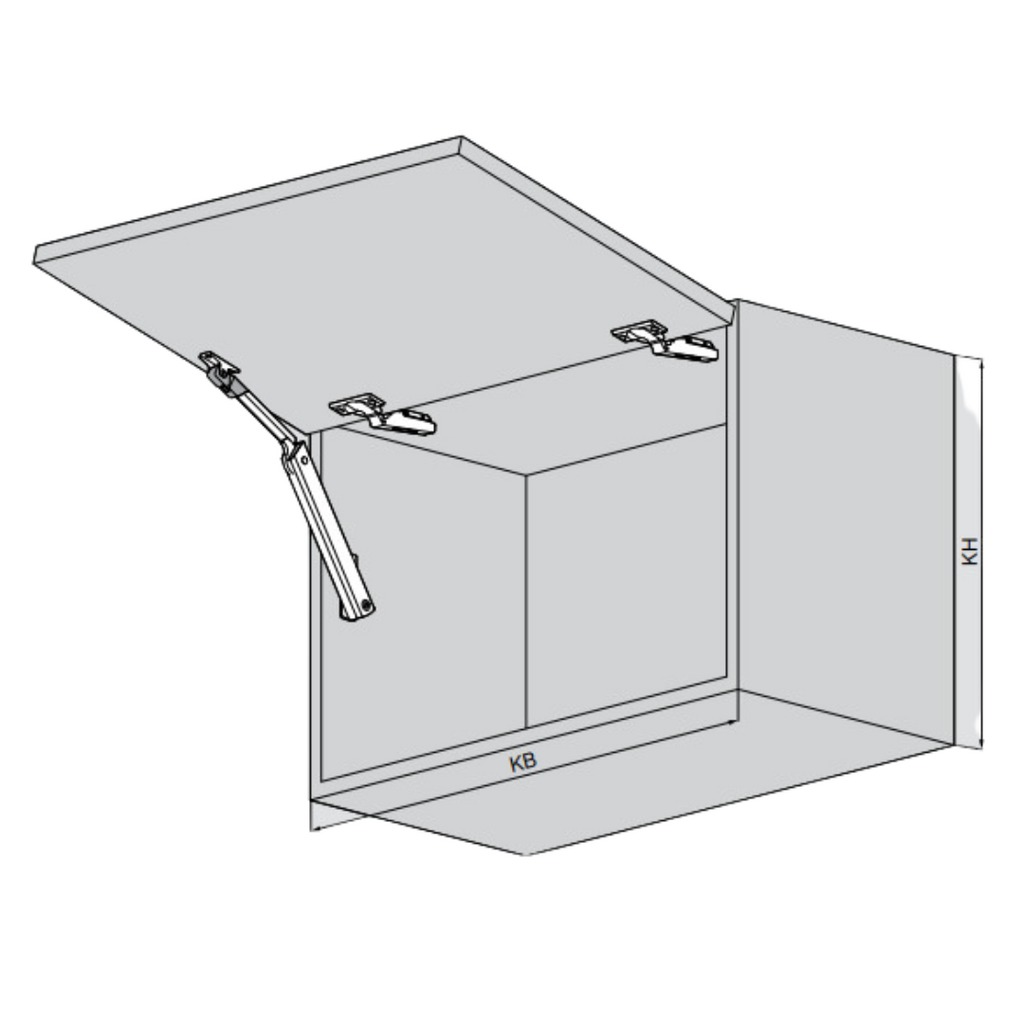

- Cabinet height 240mm (9⅜') to 600mm (24')
- Internal cabinet depth Min. 125mm (5')
- 2 lift mechanisms required for cabinets width greater than 24' and up to 72' with proper lift mechanisms
- use with Clip Top Blumotion hinge 71B3550/71B3580/71B3590
- 3 hinges required for door width over 36'
- 4 hinges required for door width over 48'

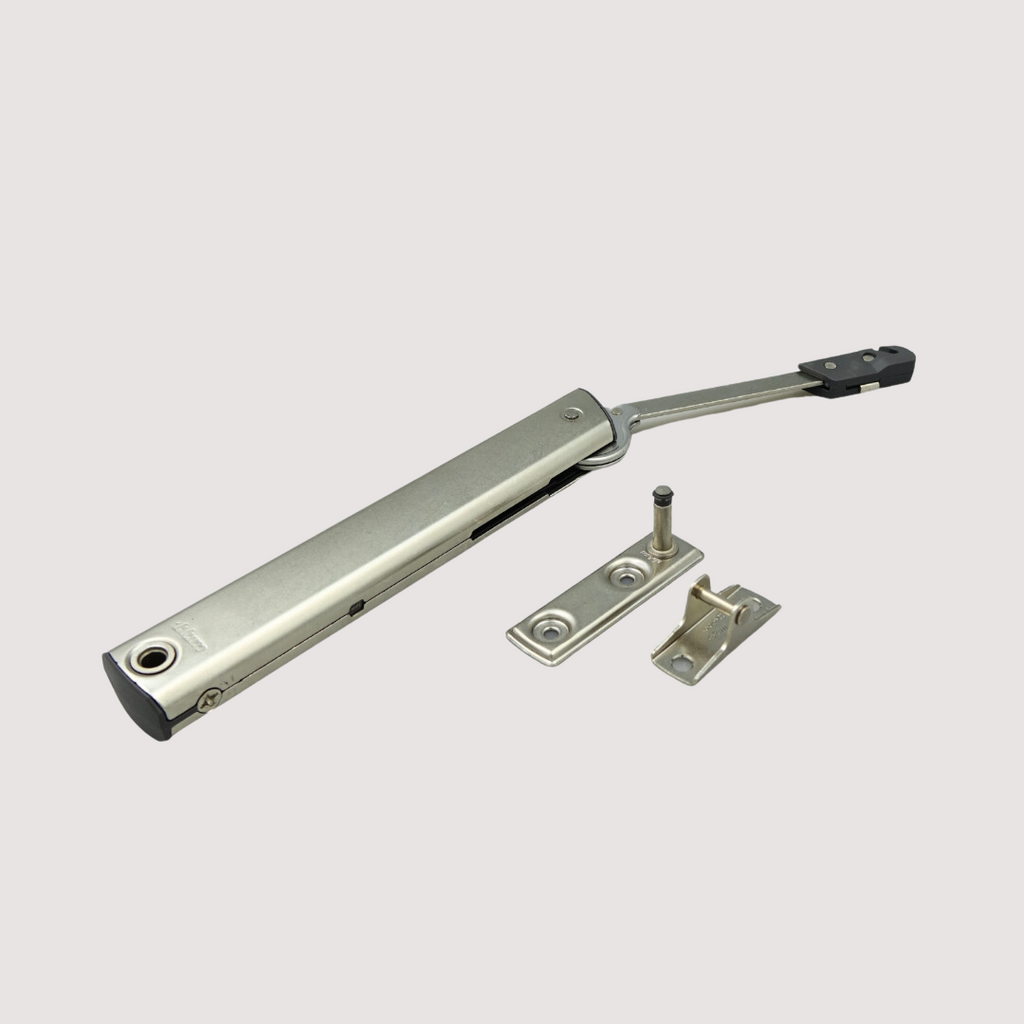

A set of AVENTOS HK-XS - Stay Lift includes:
- arm mechanism BLUM-20K1301
- cabinet mounting plate, screw on BLUM-20K5101
- door mounting plate, screw on BLUM-20K4101
For more information on the installation, do visit Blum product catalogues below:
Assembly Instruction: PDF
Installation Video: Clip
