Description
Specification:

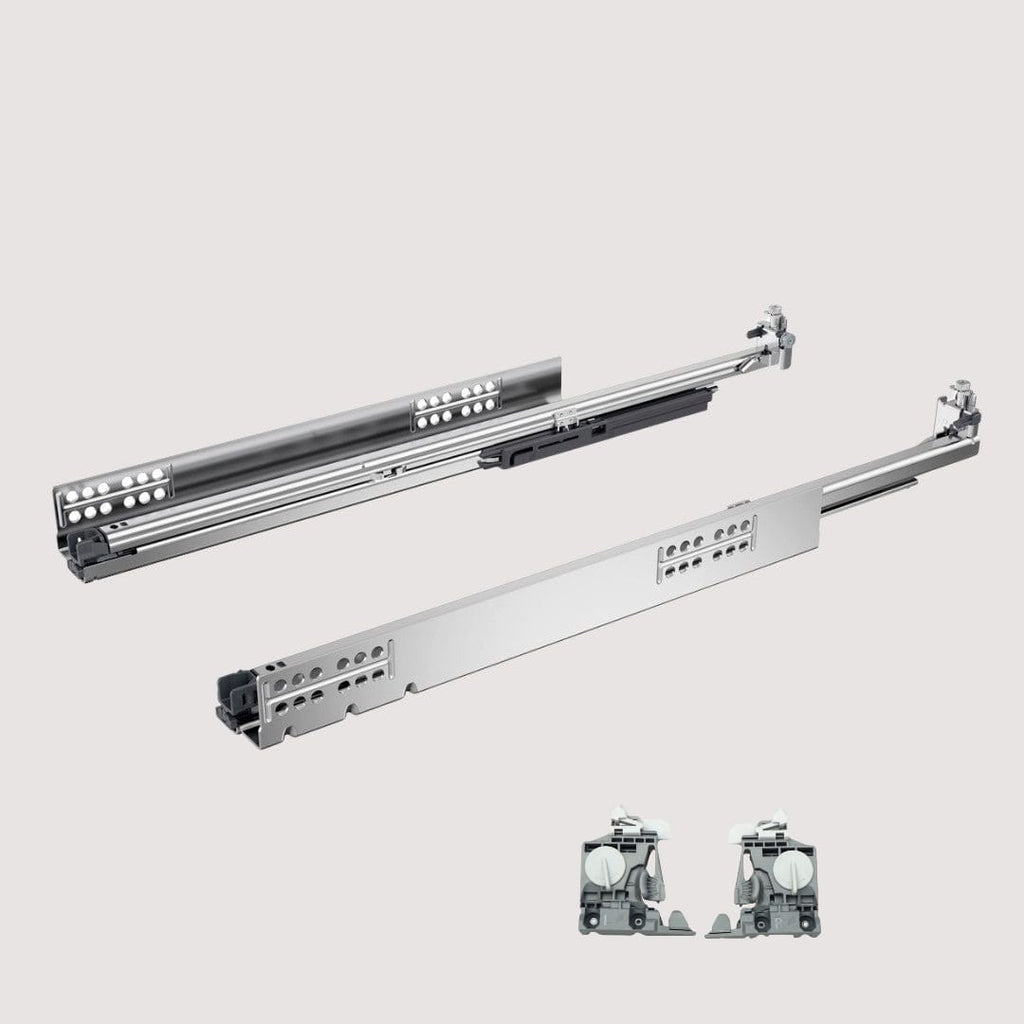

- Slide on installation with 2D catches for height and side adjustment, integrated depth adjustment, integrated tilt adjustment, and integrated radial adjustment
- Integrated Silent System
- Adjustments all tool-lees: height adjustment up to + 3 mm, side adjustment up to +/- 1.5 mm, depth adjustment up to + 2/- 1 mm, tilt adjustment up to + 4 mm and radial adjustment up to +/- 1.5 mm
- Optional: Push to open Silent opening system
- Optional: synchronisation / multi synchronisation for Push to open Silent
- Optional: pull-out shelf support / pull-out shelf locating catch
- Load classes XS (10 kg) / M (30 kg)
- Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
- Suitable for drawers with a side profile thickness of up to 16 mm
- Load capacity to EN 15338, Level 3
- Galvanised steel
- Comes with various depth
- 400mm(HTT-9332651&9332652&9329162&9329163)
- 450mm(HTT-9332655&9332656&9329162&9329163)
- 500mm(HTT-9332659&9332660&9329162&9329163)
- 550mm(HTT-9332663&9332664&9329162&9329163)
Link for installation instructions:
